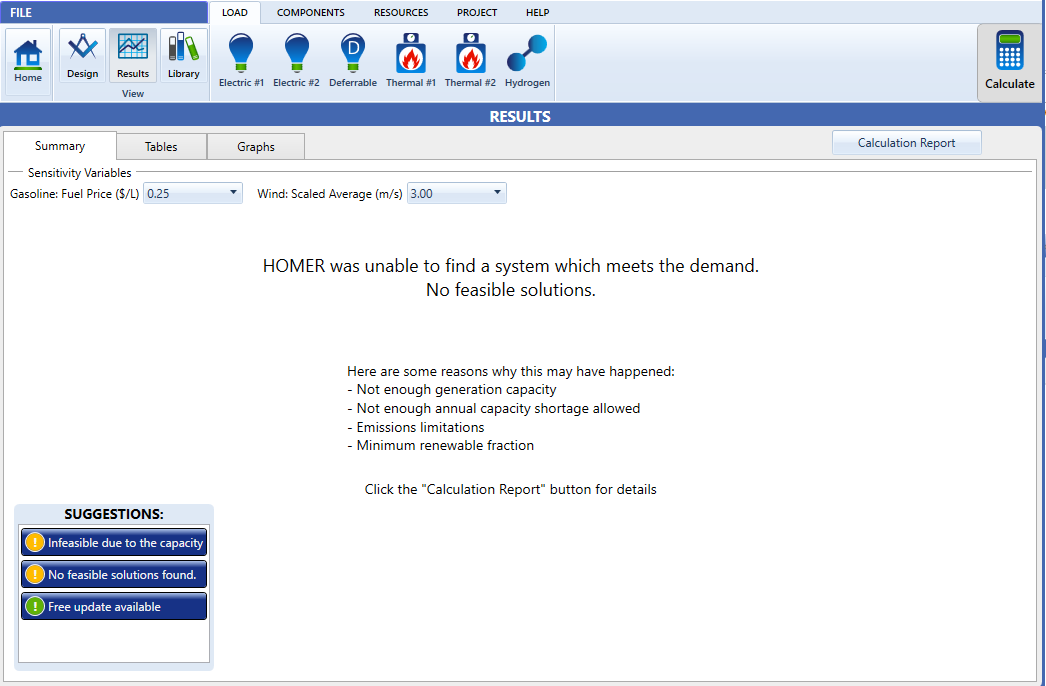

The image provided below is an example of how the summary tab looks if your model produces no feasible solutions.
If there are no feasible solutions, view some of the possible tips and considerations listed below.

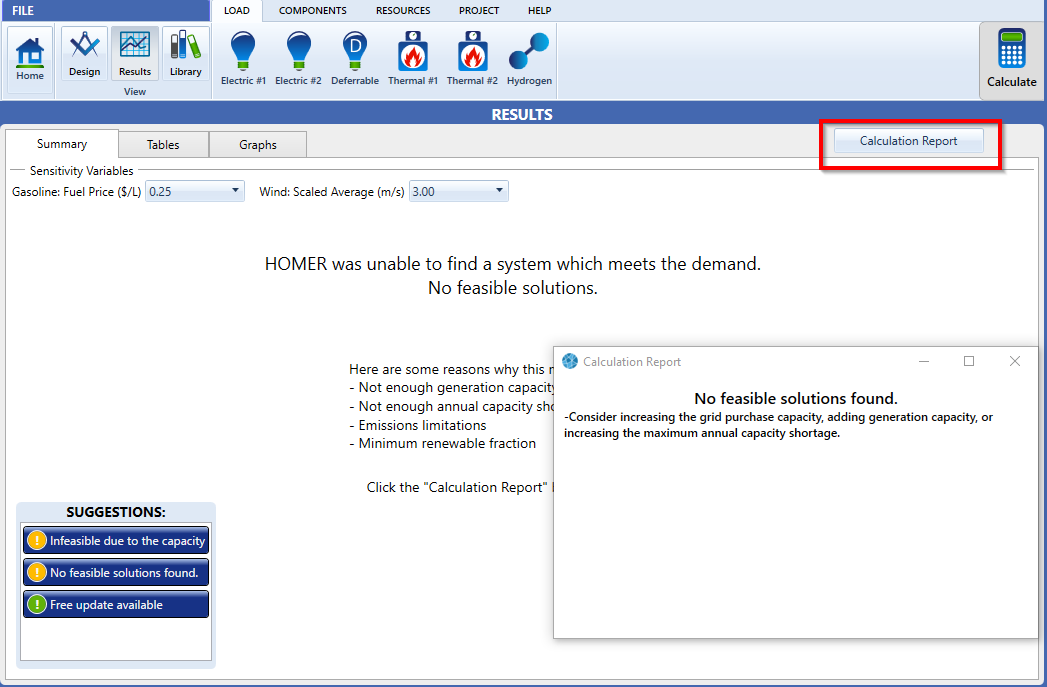

•Check the calculation report to get information on how many simulations were run, and why they were deemed infeasible

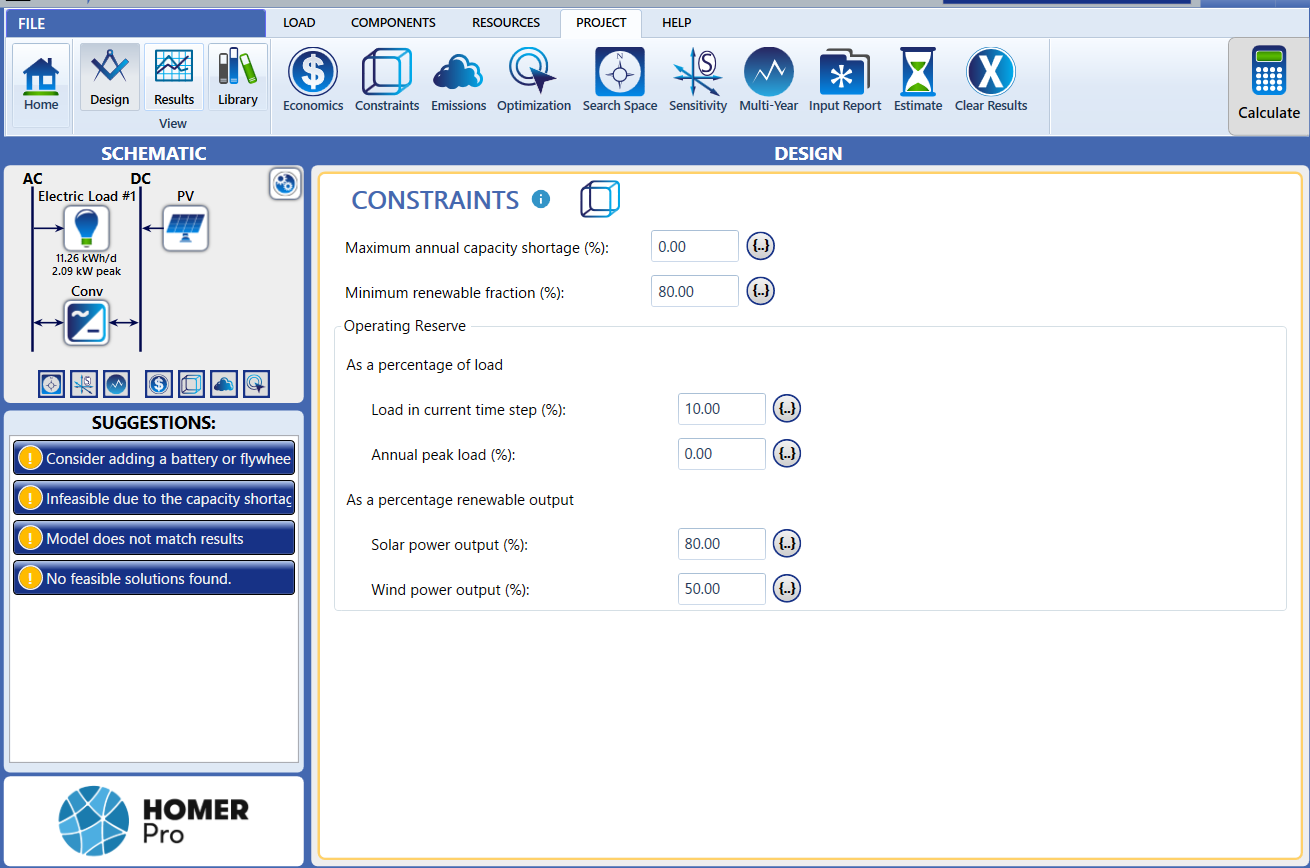

•Look through the model for constraints that might have filtered out the simulations as infeasible. Some of the reasons could be:
a. Load not served during outages due to insufficient power supply from other resources such as solar/battery/wind/generators |

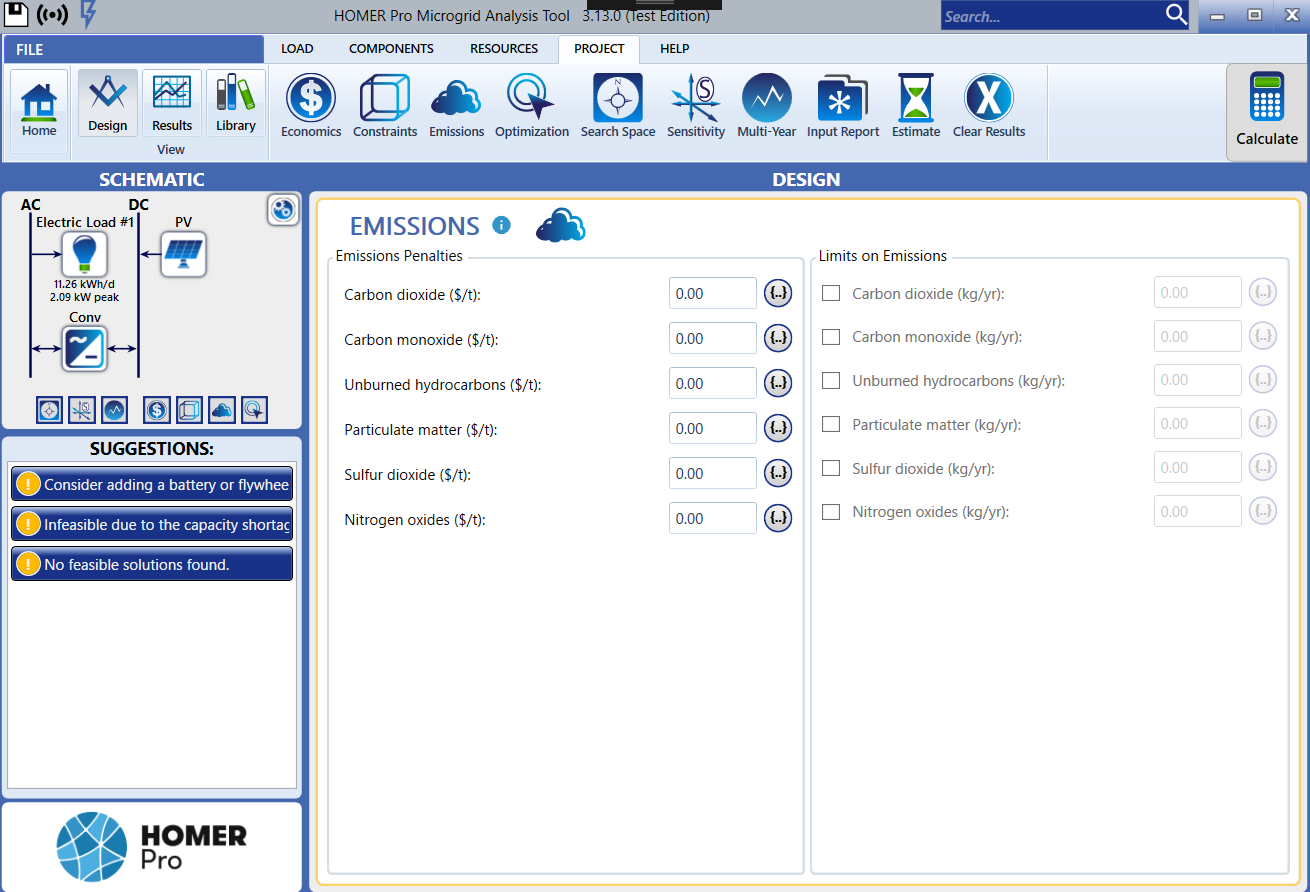

b. Penalties on emissions, as shown in Emissions below |
c. A high minimum renewable fraction in your Project Economics
