The following five wind data parameters were measured for the 239 weather stations in the U.S. National Solar Radiation Data Base:

Annual average wind speed

Weibull k value

Autocorrelation factor

Diurnal pattern strength

Hour of peak wind speed

The numerical results are displayed in the table of measured parameters. The histograms below show the distribution of each of these parameters.

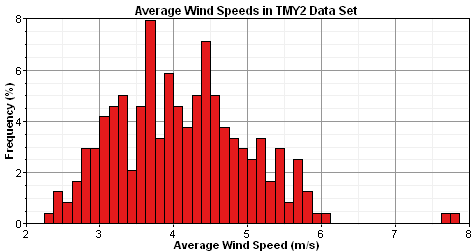

graphics_data-wind-histogram-vbar

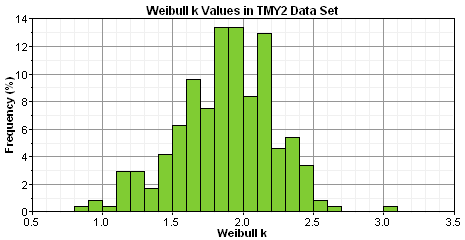

graphics_data-wind-histogram-k

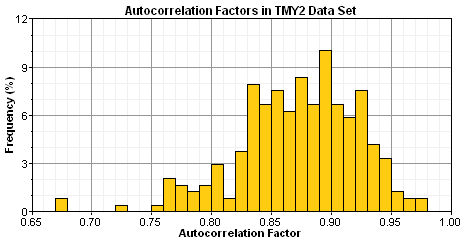

graphics_data-wind-histogram-acf

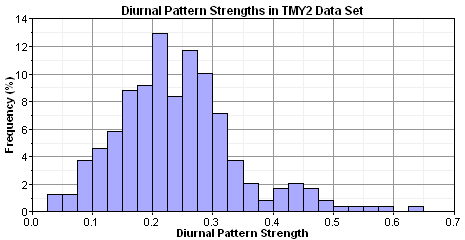

graphics_data-wind-histogram-dps

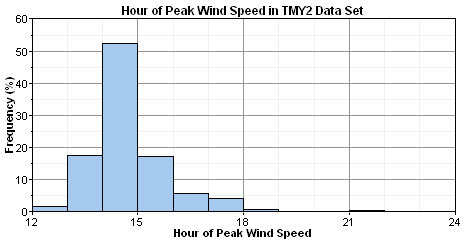

graphics_data-wind-histogram-hpw
