Custom Component

Scroll Prev Top Next More

HOMER Logo

shots_components_custom_component_icon


The Custom Component page provides various options for creating your own customized component.

Types of Custom Components

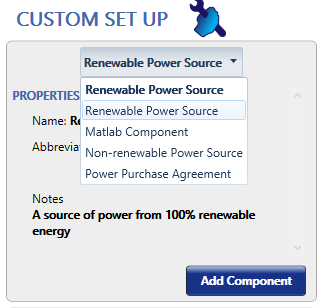

To create a customized component, choose an appropriate Custom Component method from the drop-down menu at the top of the Custom Set Up page. A summary of the selected custom component's properties appears in the space below. Click the Add Component button to add the selected component to your model.

customcompoennt

The Custom Component options are:

Renewable Power Source: You can specify a time-series power output from a renewable component.

Matlab Component: You can include a MATLAB M-file that calculates how much power is produced by the component.

Non-renewable Power Source: You can specify a time-series power output from a non-renewable component.

Power Purchase Agreement: You can use a Power Purchase Agreement (PPA) from a 100% renewable source.



Note: If the imported power output accounts for energy loss and is negative at any time step, HOMER will treat these values as zero.
