The Wind Turbine page allows you to choose the type of wind turbine you want to model, specify its costs, and tell HOMER how many turbines to consider as it searches for the optimal system. This page also provides access to the following tabs:

Power Curve: View and edit the power curve for the selected wind turbine

Turbine Losses: Specify different loss modes

Maintenance: Consider maintenance tasks, costs, and downtime

To add a wind component, click the Wind Turbine button under the Components tab in the toolbar. On the Wind Turbine Set Up page, select an option from the drop-down list, which contains all the wind turbine types stored in your Component Library.

shots_turbine-type

A summary of the selected wind turbine's properties appears in the space below. Click the Add Wind Turbine button. On the Wind Turbine page, you can manage information for the model.

Costs

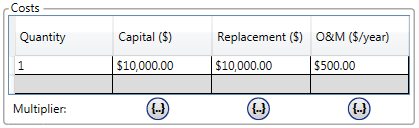

In the Costs table on the Wind Turbine page, the capital cost is the initial purchase price for a turbine, the replacement cost is the cost of replacing the wind turbine at the end of its lifetime, and the operation and maintenance cost is the annual cost of operating and maintaining the turbine (typically 2% of the capital cost).

shots_wind-turbine-costs

When specifying the capital and replacement costs, be sure to account for all costs associated with the wind energy system, which may include:

Turbine rotor and tower

Control system

Wiring

Installation

Cost Curve

In the Costs table, enter the wind turbine's cost curve in as much detail as you want. If each wind turbine costs the same regardless of how many you purchase, you only need to enter one row of data in the cost table. Enter a quantity of one, along with the per-turbine capital, replacement, and O&M costs. HOMER extrapolates these costs as needed, so if you model a system with three wind turbines, the associated capital, replacement, and O&M costs would be three times the values entered in the cost table.

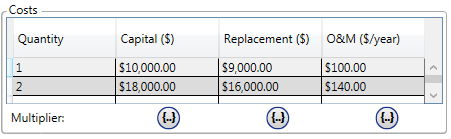

If the cost of wind power is not directly proportional to the number of wind turbines purchased, click "Click here to add a new item" at the bottom of the table to enter multiple rows of data.

shots_inputs-wind-turbine-cost-table

In the example above, the second wind turbine is cheaper than the first (possibly because of a volume discount from the manufacturer or because certain fixed costs can be spread over multiple turbines). With these two rows specified, HOMER extrapolates the costs by assuming that the third, fourth, and subsequent turbines cost the same as the second. If a third turbine is actually cheaper, add another row of costs.

Search Space

Enter the quantity of turbines you want to use or several different quantities for HOMER to consider in the system optimization. Include a zero if you want HOMER to consider systems without this wind turbine.

Click the Star icon to enable the optimizer. The Search Space is replaced by the Optimizer. You can set a lower bound, upper bound, and base. With the optimizer turned on, HOMER automatically finds the best quantity for you. It compares the quantities between the upper and lower bounds with the base. The default for the base is 0.

shots_optimizer_search_space_3     shots_optimizer_search_space_4

Tip: If you are considering a small number of wind turbines (i.e., 0, 1, or 2), it is often better to only enter the quantities in the Search Space, and not use the Optimizer. If you are considering four or more different quantities of wind turbines, the Optimizer is helpful.

See Optimization for a more detailed explanation of HOMER's optimizer.

Electrical Bus

Select whether the turbine produces AC or DC power. Power electronics are not modeled explicitly, but you can account for a dedicated converter efficiency by scaling the power curve.

Site-specific Inputs

Variable

Description

Lifetime

The number of years the turbine is expected to last before it requires replacement

Hub height

The height above ground of the hub (the center of the rotor), in meters

Consider ambient temperature effects?

HOMER compensates for the change in air density with temperature. If checked, you must define a Temperature Resource.

Note: To the right of each numerical input is a sensitivity button (shots_sensitivity-button) that allows you to do a sensitivity analysis on that variable. For more information, see Why Would I Do a Sensitivity Analysis?

Power Curve

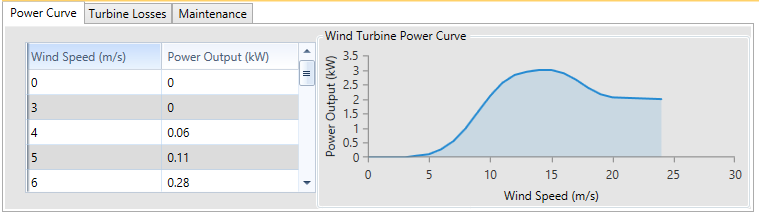

The Power Curve tab allows you to view the power curve of the selected wind turbine model in both tabular and graphical form. A wind turbine's power curve shows how much power it will produce depending on the incoming hub-height wind speed at standard atmospheric conditions. Use this graph to verify that the wind turbine you selected is an appropriate size for your system.

shots_components_wind_turbine_power_curve

Turbine Losses

The Turbine Losses tab allows you to derate the turbine performance with several different factors. Enter the numbers and press Enter. The "Overall loss factor" is calculated multiplicatively as in the following equation:

equations_wind_turbine_loss

In this equation, each loss percentage is an Li , from L1 (availability losses) to L7 (other losses). The turbine power output is then scaled down by the resulting factor.

Maintenance

HOMER can include the cost and downtime for specific maintenance tasks in the simulation. Check the "Consider Maintenance Schedule" box to use this option. Use the following inputs under the Maintenance tab to define a maintenance requirement.

Variable

Description

Procedure

A descriptive name for the maintenance item

Interval (hrs.)

How often the maintenance must be performed, in terms of the number of hours the wind turbine is operating or total (calendar) hours, depending on the selection in the Type field.

Type

Whether the maintenance interval is in Operating hours or Calendar hours (i.e., total hours including when the wind turbine is off)

Downtime (hrs.)

The number of hours for which the wind turbine is forced off after the end of the maintenance interval

Cost ($)

The cost of the maintenance procedure, which is incurred at the end of each maintenance interval

Marginal cost

Additional cost added to the maintenance event, per wind turbine

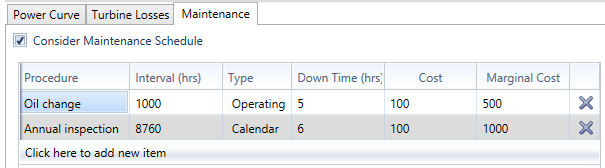

The cost for a maintenance event is computed as the Cost (fixed cost) plus the marginal cost multiplied by the number of turbines. In the maintenance example below, $100 is the fixed cost, which might be the minimum cost for the maintenance personnel to travel to the site. For the oil change, there is an additional cost of $500 per wind turbine (marginal cost). If there are five wind turbines, the total cost of this event is $2600.

shots_wind_turbine_maintenance

The oil change event occurs every 1,000 operating hours. Hours where the wind turbine is off are not counted. The wind turbine can be nonoperational if the wind speed is too low or too high, or during downtime for a maintenance event. The annual inspection occurs every 8,760 Calendar hours. This event occurs every year at the same date and time.

Note: An event that occurs every 8,760 Calendar hours (once per year) only occurs 24 times in a 25 year project. The event occurs at the end of every year from the first year to the 24th year, but not at the end of the 25th year.
